Charging rate:

充氣速度

100L/min –6m3/h

100升/分鐘

Filling time cylinder:

充瓶時間

6.8L 0-300bar/20.4min

12L 0-200bar/24min

Working pressure:

工作壓力

225 Bar / 3300 Psi

330 Bar / 4500 Psi

Driven by:

驅動方式

Three-phase electric motor/one-phase

三相馬達/單相馬達

Power:

功率：

2.2Kw

Dimensions:

體積

height40cm, width68cm, depth37cm

Dry weight:

凈重

39 Kg

Noise pressure:

噪音

78 dB

78分貝

Number of stages and cylinders:

壓縮機氣缸數

4

Lubricating oil capacity:

潤滑油加注量

300 cc (0,3 L)

Lubricant:

潤滑油

GS高壓機專用油

Oil/mosture separator:

油/水分離

After last stage

末級油水分離器

Filtration:

過濾器

Filter cartridge activated carbon and molecular sieve

活性碳和分子篩過濾器

Suction filter:

吸入過濾器

2 micron paper - 25 micron polyester

2微米紙過濾器或25微米聚酯過濾器

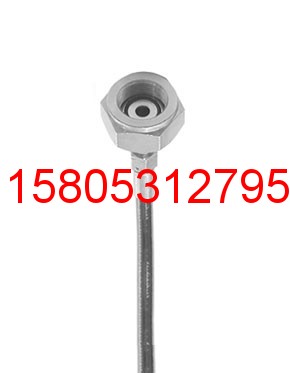

DIN 300bar(G5/8默認配置)

Code:

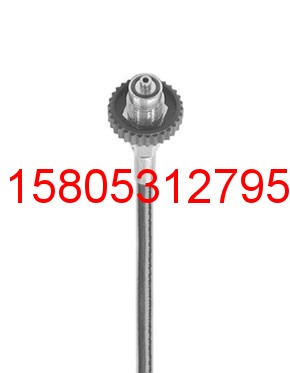

意大利標準充氣接頭

Code:

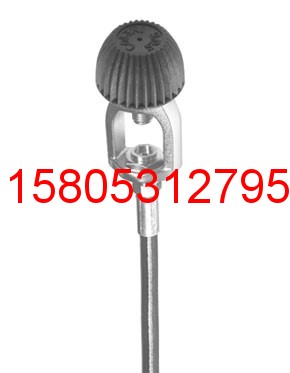

潛水充氣接頭

Code:

DIN230BAR

Code:
